Description

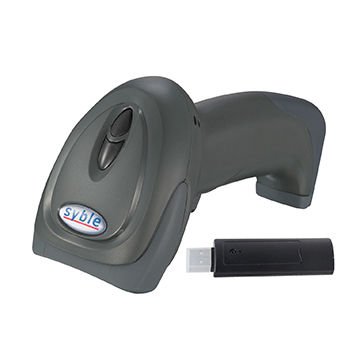

Industrial 2.4G wireless barcode scanner with USB pairing receiver

Product feature

– USB wireless receiver, plug and play, easy to set up, can be used quickly
– Empty transmission distance of 50-80 meters
– Automatic storage beyond distance
– Can store about 512,000 characters

Model number:XB-5066R

The 1D wireless barcode scanner XB-5066R has high resolution laser scanning engine,can store 512,000 characters,50-80m long distance wireless transmission.

Specification

Model Number: XB-5066R
Performance Parameters
Light Sources 650nm laser(Safe visible laser diode)
Supported Symbologies
EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects
Scan Type Single Laser
Scan Method Manually/Contnuous/Automatic inductive scanning(Optional)
Scan Angle Yaw 55°,Rotation 30°,Pitch 65°
Precision 4mil(0.1mm)
Depth of scan field 10-250mm(0.33mm,PCS90%)
Error Rate Less than 1/5 million
Interface USB-HID
Operating Frequency 2.4G
Transmission Distance 50-80M(Open Yard)
Storage Ability 512000 Bytes
Pairing Model One to one
Physical Parameters
Dimensions 85mm*62mm*154mm
Weight 220g
Material ABS+PC
Cable Length 1M
Environmental Parameters
Operating Temperature -20℃~40℃
Storage Temperature -40℃~70℃
Relative Humidity 0%~85%(Non-condensing)
Electrical Parameters
Voltage DC5V±10%
Current 85mA(Operating); 150uA(Quiescent Current)
Lithium battery 2200mA

Packing list:

List of per Unit:
1*2d gun-type bar code scanner

1*Stand(optional)
1*2m Cable
1*User Manual(English Version)
Model number:XB-5066R
Dimensions per Unit: 10*8*24 CM
Weight per Unit: 0.5KG (without stand); 1KG (with stand)
Units per Export Carton: 50 Units
Export Carton Dimensions: 53*52*45 CM (without stand); 50*66*50(with stand)
Export Carton Weight: 25KG (without stand); 33KG(with stand)
